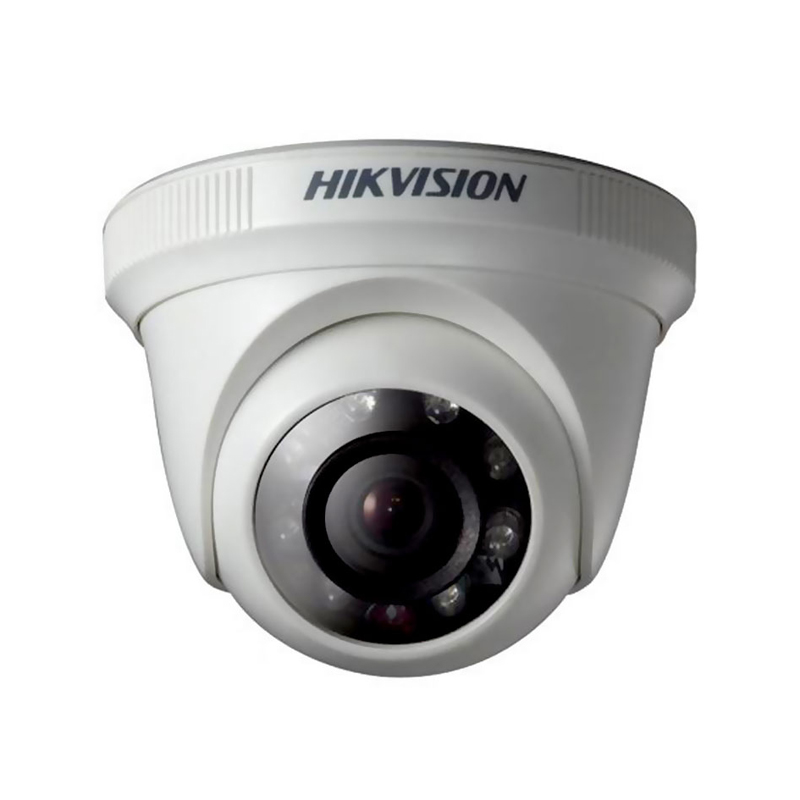

DS-2CE55C2P(N)-IRP

Camera

Image Sensor

1/3”  PICADIS

Signal System

PAL/NTSC

Eff ective Pixels

1280 (H) × 960 (V)

Min. Illumination

0.1 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter speed

PAL: 1/25 s to 1/25,000 s NTSC: 1/30 s to 1/30,000 s

Lens

3.6mm (2.8mm, 6mm optional)

Angle of view: 71.4° (3.6 mm)

Lens Mount

M12

Angle Adjustment

Pan: 0 - 360°; Tilt: 0 - 75°; Rotation: 0 - 360°

Day & Night

IR cut fi lter with auto switch

Horizontal Resolution

720 TVL

Synchronization

Internal synchronization

Video Output

1Vp-p composite output (75 Ω/BNC)

S/N Ratio

More than 62 dB

General

Working Temperature/Humidity

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply

12 V DC

Power Consumption

Max. 1.5 W
(Max. 4.5 W with IR cut fi lter on)

IR Range

20 meters

Dimensions

Φ89.5 × 69.8 mm(Φ3.52” ×2.75”)

Weight

200 g (0.44 lbs)
