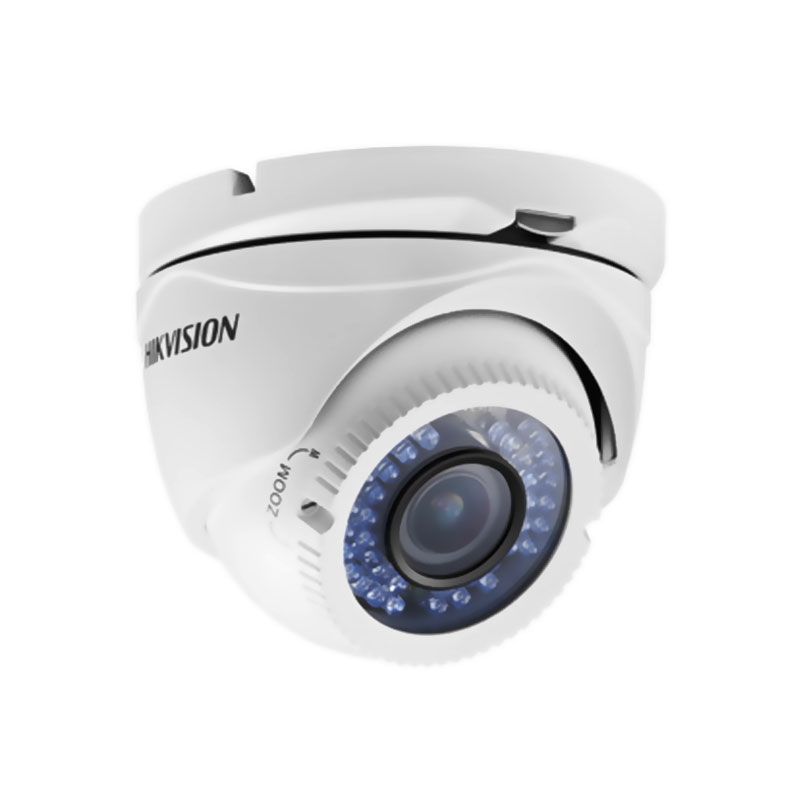

DS-2CE55A2P(N)-VFIR3

Camera

Image Sensor

1/3" DIS

Signal System

PAL/NTSC

Effective Pixels

976(H)×496(V)

Min. Illumination

0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
0.14 Lux @ (F1.4,AGC ON),0 Lux with IR

Shutter speed

PAL: 1/50 s to 1/100,000 s NTSC: 1/60 s to 1/100,000 s

Lens

2.8-12mm @ F1.4

Angle of view: 80° - 27.2°

Lens Mount

φ14

Angle Adjustment

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day & Night

IR cut filter with auto switch

Horizontal Resolution

700 TVL

Synchronization

Internal synchronization

Video Output

1Vp-p composite output (75 Ω/BNC)

S/N Ratio

More than 62 dB

BLC

On

General

Working Temperature/ Humidity

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply

12 V DC ± 10%

Power Consumption

Max. 4 W
(Max. 5 W with IR cut flter on)

Ingress Protection

IP66

IR Range

Approx. 30 to 40 meters

Dimensions

134.2×123.9×88.1mm(5.28”×4.88”×3.47”)

Weight

800g (1.76l lbs)
