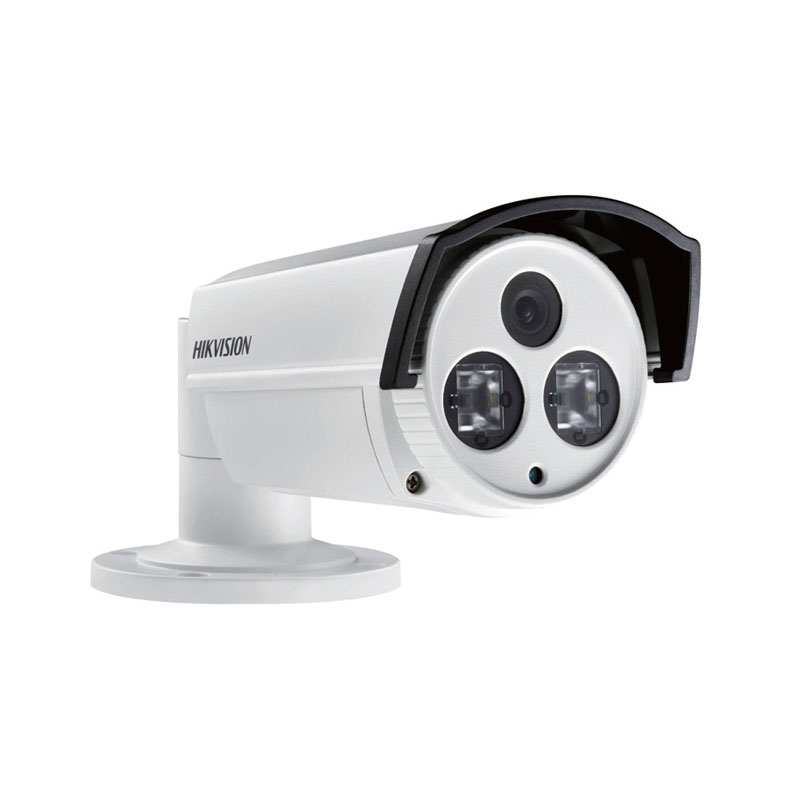

DS-2CE16C2P(N)-IT5

Camera

Image Sensor

1/3”  PICADIS

Signal System

PAL/NTSC

Eff ective Pixels

1280 (H) × 960 (V)

Min. Illumination

0.1 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter speed

PAL: 1/25 s to 1/25,000 s NTSC: 1/30 s to 1/30,000 s

Lens

3.6mm (6mm,8mm,12mm,16mm optional)

Lens Mount

M12

Day & Night

IR cut fi lter with auto switch

Horizontal Resolution

720 TVL

Synchronization

Internal synchronization

Video Output

1Vp-p composite output (75 Ω/BNC)

S/N Ratio

More than 62 dB

General

Working Temperature/
Humidity

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply

12 V DC

Power Consumption

Max. 5 W

Ingress Protection

IP66

IR Range

80 meters

Dimensions

105×104.8×263.1mm(4.13” ×4.13” ×10.36”)

Weight

800 g (1.76 lbs)
