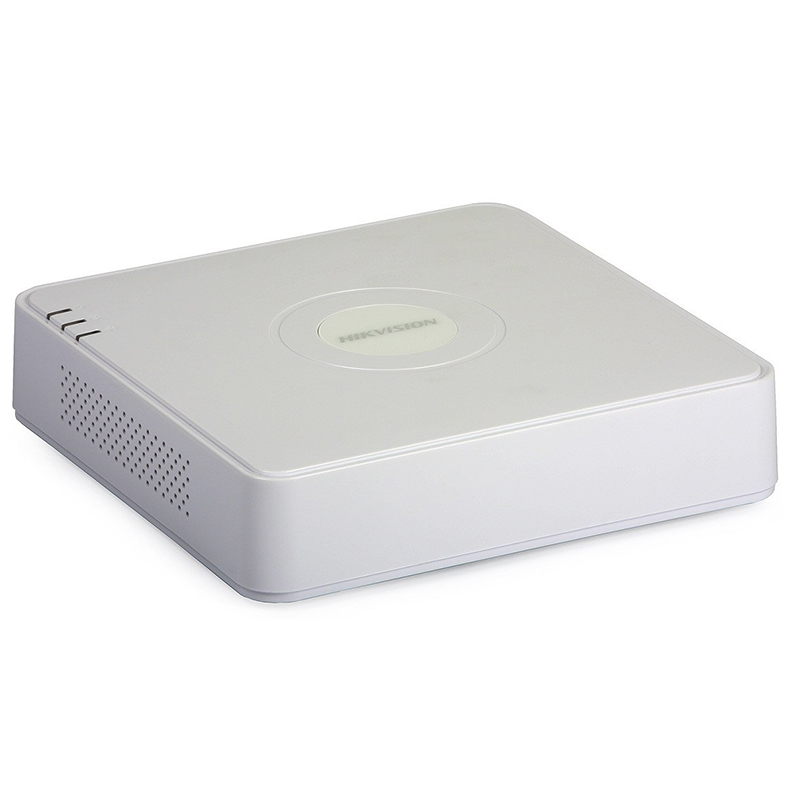

DVR & NVR : DS-7116HQHI-F1/N

DS-7116HQHI-F1/N

Print

Key Features


• H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, AHD and analog cameras with
adaptive access
•Support 1080P lite mode enabled to realize the real-time
1080P lite and 720P lite resolution
• HDMI and VGA output at up to 1920×1080P
resolution,
• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution
• playback at up to 256X speed.
Description
Model      DS-7116HQHI-F1/N
Video/Audio input   IP video input   2-ch(up to 18-ch) up to 2MP resolution
Two-way audio   1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output   Recording resolution

Main stream: 1080P(non real time)/720P/WD1/VGA/4CIF/CIF; Sub-stream: WD1( non real time)/4CIF(non real time)/CIF/QCIF/QVGA

CVBS output   1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI output   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
VGA output   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Audio output   1-ch, RCA (2.0 Vp-p, 1KΩ)
Playback resolution

1080P/1080P(lite)/720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Synchronous playback   4-ch
Hard disk   SATA   1 SATA interfaces
eSATA   1 eSATA interface
Capacity   Up to 6 TB capacity for each disk
External interface   Network
interface
1; 10M / 100M self-adaptive Ethernet interfaces

Serial interface

1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface

USB interface   2 USB 2.0 interfaces
Alarm in   16-ch
Alarm out   4-ch
Others   Power supply   12 V DC
Consumption
(without hard disk or
DVDR/W)
≤ 8W
  Working temperature   -10 ~ +55 oC(14oF ~ 131 oF)
Working humidity   10 % ~ 90 %
Chassis   Mini 1U chassis



  Dimensions
(W × D × H)
200× 200× 45mm (17.5 x 15.3 x 2.7 inch)
Weight   ≤ 0.8Kg (4.4lb)
