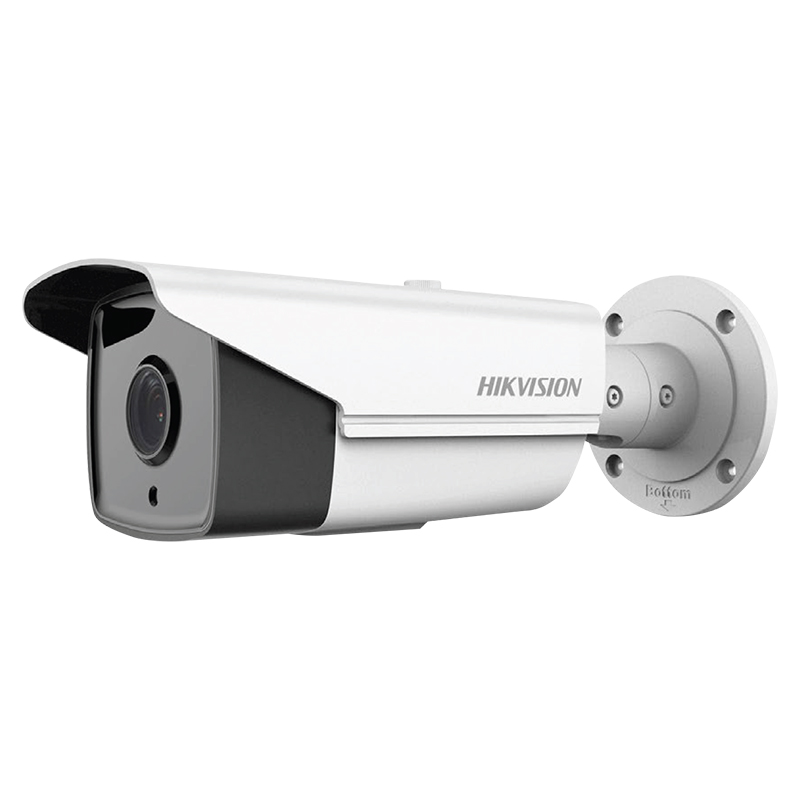

DS-2CE16F7T-IT1/IT3/IT5

Print

Key Features



  • 3 Megapixel high-performance CMOS
  • Analog HD output, up to 3MP resolution
  • True Day/Night
  • OSD menu, DNR, Smart IR
  • True WDR, up to 120dB
  • EXIR technology, up to 20/40/80m IR distance
  • IP66 weatherproof
  • Up the Coax(HIKVISION-C)
Description
Camera Image Sensor: 3MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 2052(H)*1536(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm)
Lens Mount: M12
Adjustment Range: Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 1920 ×1536@18fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Menu D/N Mode: Color/BW/SMART
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Function: Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
General    Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 5W
Weather Proof: IP66
IR Range: Up to 20/40/80m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Weight: Approx. 680g (1.5lb)
